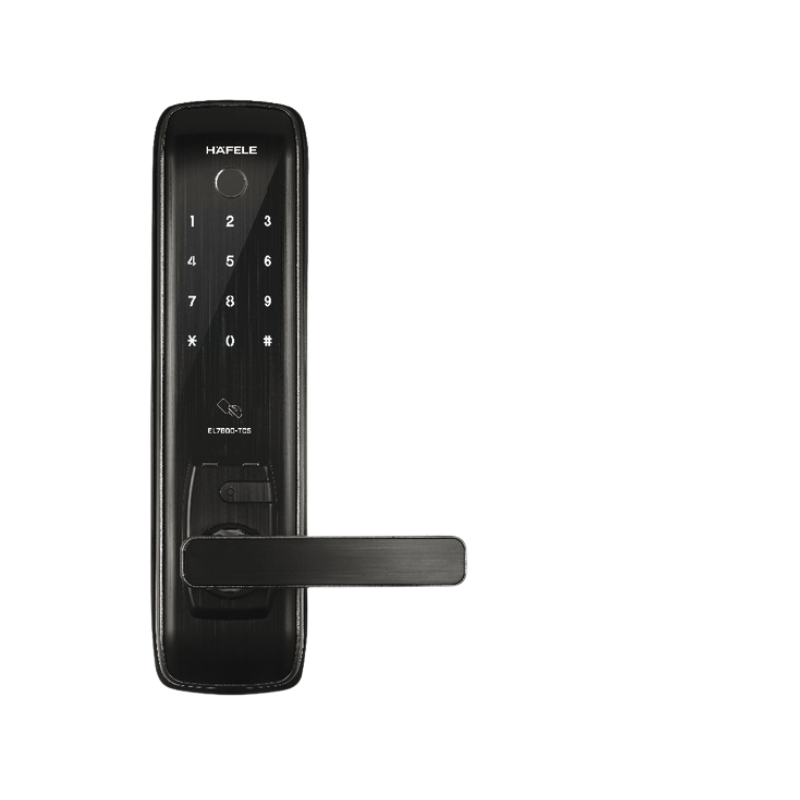

Hafele EL7800 Digital Door Lock

The Hafele EL7800 is a Mortise Lock that is meant to replace your current handle lever or handle bar.

Hafele EL7800 Smart Digital Door Lock is the ideal way to secure your home. It combines the latest technology with high security to offer the safety and convenience your home deserves at a great price.

The Hafele EL7800 Digital Door Lock includes 4 in 1 access:

•     Fingerprint
•     Pin code
•     RFID card
•     Mechanical key

With the price to value comparison against it's competitors, Hafele is definitely the way to go.

Product Features

•     Random security coding function
•     Built-in fire alarm sensor
•     Mischief and hacking prevention system
•     Low battery and intrusion warning function
•     One touch button suspension function (lock/unlock button)
•     Auto-lock and auto-relock function
•     Battery residual identification & Replacement time alarm function
•     Fake PIN code (PIN Scramble)
•     External / Internal dual locking mode
•     Auto lock and Auto relock after 7s
•     Auto lock & manual lock
•     Burglar (Break-in / Damage) Alarm
•     Failed locking alarm function
•     Low battery alarm function
•     Volume control

Lock Type
Mortise

Access Mode
Fingerprint, RFID Card, Pin, Mechanical Keys

User Memory
1 Master Pin, User Pins (up to 8), Fingerprint (up to 100), RFID Cards (up to 50)

Dimension (mm)
Front dimension: 300 (L) x 80 (W) x 68.7 (D) mm

Back dimension: 300 (L) x 79 (W) x 60.7 (D) mm

Door Thickness
40 - 60 mm

Door to gate clearance required
75 mm
